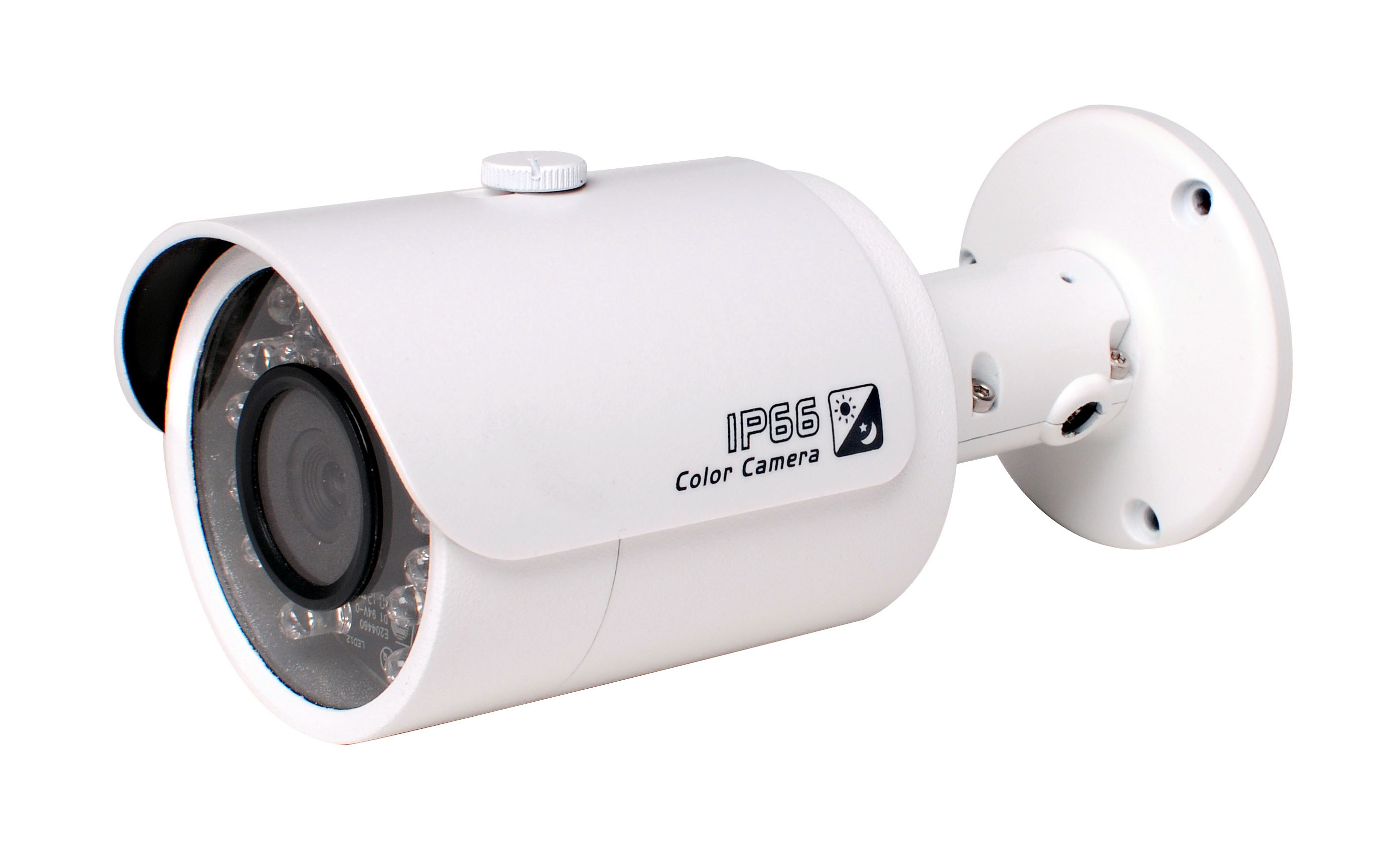

HAC-HFW2100S |
 |
| |
|
|
|
HAC-HFW2100S | |
Overview |
> 1/3" 1.3Megapixel CMOS
>25/30/50/60fps@720P
>High speed, long distance real-time transmission
>HD and standard definition switch.
>OSD Menu, control over coaxial cable
>Day/Night(ICR), AWB, AGC, BLC, 3D-DNR,
>6mm fixed lens (2.8 mm, 3.6mm, 8mm optional)
>Max. IR LEDs length 20m, Smart IR
>IP66, DC12V |
|
 | |
| Model |
DH-HAC-HFW2100SP |
DH-HAC-HFW2100SN |
| Camera |
| Image Sensor |
1/3" 1.3Megapixel CMOS |
| Effective Pixels |
1280(H)×960(V) |
| Electronic Shutter |
4/25s~1/45,000s |
4/30~1/54,000s |
| Video Frame Rate |
1280×720@25 fps?1280×720@30 fps?
1280×720@50 fps?1280×720@60 fps |
| Synchronization |
Internal |
| Min. Illumination |
[email protected](0Lux IR LED on) |
| Video Output |
1-channel BNC HDCVI high definition video output/ CVBS standard definition video output (Can switch) |
| Camera Features |
| Max. IR LEDs Length |
20m, Smart IR |
| Day/Night |
Auto(ICR)/B&W/Color |
| Noise Reduction |
2D/3D |
| OSD Menu |
Support |
| Lens |
| Focal length |
6mm (2.8 mm, 3.6mm, 8mm optional) |
| Mount Type |
M12 |
| General |
| Power Supply |
DC12V±10% |
| Power Consumption |
Max 4.2W |
| Working Environment |
-30°C~+60°C/ Less than 95%RH (no condensation) |
| Transmission Distance |
Over 500m via 75-3 coaxial cable |
| Ingress Protection |
IP66 |
| Dimensions(W×D×H) |
Φ65mm x154.7mm |
| Weight |
380g |
| Others |
Default: bracket included | |
|
|
|
|
|
|
|
