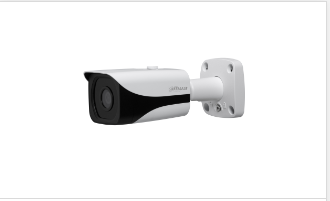

  Dahua รุ่น IPC-HFW4631E-SE


Dahua รุ่น IPC-HFW4631E-SE

6MP WDR IR Mini Bullet Network Camera

> 1/2.9” 6Megapixel progressive scan STARVIS™ CMOS
> รองรับระบบ H. 265&H.264 triple-stream encoding
> อัตราเฟรมเรท 20fps@6MP(3072x2048), 25/30fps@4MP(2688x1520)
> ซัพพอร์ต Smart Detection
> WDR(120dB)ย้อนแสง, โหมดกลางวัน / กลางคืน(ICR), 3DNR, AWB, AGC, BLC
> ตรวจสอบเครือข่ายหลายช่องทาง: Web viewer, CMS(DSS/PSS) & DMSS
> เลนส์ฟิก 2.8mm ,3.6mm
> ระยะอินฟาเรท 40 เมตร
> รองรับ SD การ์ด
> มาตราฐานกันฝุ่นกันน้ำที่ IP67
> รองรับ PoE

วิดีโอ Dahua รุ่น IPC-HFW4631E-SE



Camera

Image Sensor

1/2.9” 6Megapixel progressive scan CMOS

Effective Pixels

3072(H) x 2048(V)

RAM/ROM

512MB/32MB

Scanning System

Progressive

Electronic Shutter Speed

Auto/Manual, 1/3(4)~1/100000s

Minimum Illumination

0.04Lux/F1.6( Color,1/3s,30IRE)

0.4Lux/F1.6( Color,1/30s,30IRE)

0Lux/F1.6(IR on)

S/N Ratio

More than 50dB

IR Distance

Distance up to 40m (131ft)

IR On/Off Control

Auto/ Manual

IR LEDs

2

Lens

Lens Type

Fixed

Mount Type

Board-in

Focal Length

2.8mm (3.6mm optional)

Max. Aperture

F1.6(F1.6)

Angle of View

H: 98° (69°), V: 67° (48°)

Optical Zoom

N/A

Focus Control

Fixed

Close Focus Distance

0.9m(1.7m)

DORI Distance

Lens

Detect

Observe

Recognize

Identify

2.8 mm

69m(226ft)

28m(92ft)

14m(46ft)

7m(23ft)

3.6 mm

89m(292ft)

36m(118ft)

18m(59ft)

9m(30ft)

Pan/Tilt/Rotation

Pan/Tilt/Rotation Range

Pan:0˚~360˚; Tilt:0˚~90˚; Rotation:0˚~360˚

Intelligence

IVS

Tripwire, Intrusion, Object Abandoned/Missing

Advanced Intelligent Functions

Face Detection

Video

Compression

H.265+/H.265/H.264+/H.264

Streaming Capability

3 Streams

Resolution

(3072×2048)/(3072×1728)/(2592×1944)/(2688×1520)/(2560×1440)/(2304×1296)/1080P(1920×1080)/SXGA(1280×1024)/1.3M(1280× 960)/720P(1280×720)/D1(704×576/704×480)/CIF(352×288/352×240)

Frame Rate

Main Stream: 6MP (1~20fps), 4MP(1~25/30fps)

Sub Stream: D1(1~25/30fps)

Third Stream: 1080P(1~25/30fps)

Bit Rate Control

CBR/VBR

Bit Rate

H.264: 24K ~ 10240Kbps

H.265: 14K ~ 9984Kbps

Day/Night

Auto(ICR) / Color / B/W

BLC Mode

BLC / HLC / WDR(120dB)

White Balance

Auto/Natural/Street Lamp/Outdoor/Manual

Gain Control

Auto/Manual

Noise Reduction

3D DNR

Motion Detetion

Off / On (4 Zone, Rectangle)

Region of Interest

Off / On (4 Zone)

Electronic Image Stabilization (EIS)

N/A

Smart IR

Support

Defog

N/A

Digital Zoom

16x

Flip

0°/90°/180°/270°

Mirror

Off / On

Privacy Masking

Off / On (4 Area, Rectangle)

Audio

Compression

N/A

Network

Ethernet

RJ-45 (10/100Base-T)

Protocol

HTTP; HTTPs; TCP; ARP; RTSP; RTP; UDP; SMTP;

FTP; DHCP; DNS; DDNS; PPPOE; IPv4/v6; QoS;

UPnP;NTP; Bonjour; 802.1x; Multicast; ICMP;

IGMP; SNMP

Interoperability

ONVIF, PSIA, CGI

Streaming Method

Unicast / Multicast

Max. User Access

10 Users /20 Users

Edge Storage

NAS

Local PC for instant recording

Mirco SD card 128GB

Web Viewer

IE, Chrome, Firefox, Safari

Management Software

Smart PSS, DSS, Easy4ip

Smart Phone

IOS, Android

Certifications

Certifications

CE (EN 60950:2000)

UL:UL60950-1

FCC: FCC Part 15 Subpart B

Interface

Video Interface

N/A

Audio Interface

N/A

RS485

N/A

Alarm

N/A

Electrical

Power Supply

DC12V, PoE (802.3af)(Class 0)

Power Consumption

<6.5W

Environmental

Operating Conditions

-30° C ~ +60° C (-22° F ~ +140° F) / Less than 95% RH

Strorage Conditions

-30° C ~ +60° C (-22° F ~ +140° F) / Less than 95% RH

Ingress Protection

IP67

Vandal Resistance

N/A

Construction

Casing

Metal

Dimensions

180mm×70mm×70mm (7.09”×2.76”×2.76”)

Net Weight

0.41kg (0.91lb)

Gross Weight

0.53 kg (1.17lb)
