IPC-HFW5502CP |
| |
 |
|
|
|
IPC-HFW5502CP | |
Overview |
> 1/2.5 5Megapixel progressive scan CMOS
> H.264 & MJPEG dual-stream encoding
> Max 12fps@5M(2560×1920)&25/30fps@1080P(1920×1080)
> DWDR, Day/Night(ICR), 3DNR, Auto Iris, AWB, AGC, BLC
> Multiple network monitoring: Web viewer, CMS(DSS/Smart PSS) & DMSS
> 4~9mm vari-focal motorized lens
> 2/1 alarm in/out
> Max. IR LEDs length 30m
> Micro SD memory, IP66, Po |
|
 | |
| Model |
IPC-HFW5502C |
| Camera |
| Image Sensor |
1/2.55Megapixel CMOS |
| Effective Pixels |
2560(H)x1920(V) |
| Scanning System |
Progressive |
| Electronic Shutter Speed |
Auto/Manual, 1/3(4)~1/10000s |
| Min. Illumination |
Color: 0. 01Lux/F1.6; 0Lux/F1.6(IR on) |
| S/N Ratio |
More than 50dB |
| Video Output |
1 channel, BNC(1.0Vp-p/75Ω) |
| Camera Features |
| Max. IR LEDs Length |
30m |
| Day/Night |
Auto(ICR) / Color / B/W |
| Backlight Compensation |
BLC / HLC / DWDR |
| White Balance |
Auto |
| Gain Control |
Auto/Manual |
| Noise Reduction |
3D |
| Privacy Masking |
Up to 4 areas |
| Lens |
| Focal Length |
4~9mm motorized |
| Max Aperture |
F1.6 |
| Focus Control |
Auto |
| Angle of View |
H: 82.4°(Wide)~36.1°(Tele) |
| Lens Type |
Motorized /Auto Iris(DC) |
| Mount Type |
Board-inType |
| Video |
| Compression |
H.264 / MJPEG |
| Resolution |
5M(2560×1920)/3M(2048×1536)/1080P(1920×1080)/720P(1280×720) / D1(704×576) / CIF(352×288) / |
| Frame Rate |
Main Stream |
5M(1~12fps)/3M(1~20fps)/1080P/720P(1 ~ 25/30fps) |
| Sub Stream |
D1/CIF(1 ~ 25/30fps) |
| Bit Rate |
H.264H: 32K ~ 8192Kbps |
| Audio |
| Compression |
G.711a / G.711u/ PCM |
| Interface |
1/1 channel In/Out |
| Network |
| Ethernet |
RJ-45 (10/100Base-T) |
| Wi-Fi |
N/A |
| Protocol |
IPv4/IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, QoS, Bonjour |
| Compatibility |
ONVIF,PSIA,CGI |
| Max. User Access |
20 users |
| Smart Phone |
iPhone, iPad, Android, Windows Phone |
| Auxiliary Interface |
| Memory Slot |
Micro SD, Max 64GB |
| RS485 |
N/A |
| Alarm |
2/1 channel In/Out |
| PIR Sensor Range |
N/A |
| General |
| Power Supply |
DC12V(AC24V optional), PoE(802.3af) |
| Power Consumption |
<8.5W |
| Working Environment |
-30°C~+60°C(-H: -40°C~+60°C), Less than 95%RH |
| Ingress Protection |
IP66 |
| Vandal Resistance |
N/A |

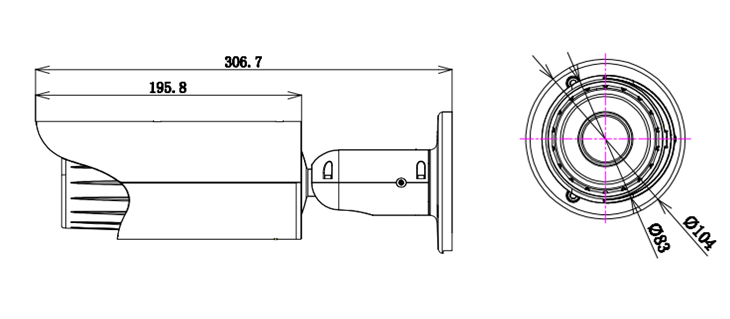

| Dimensions |
ф104mm × 306.7mm |
| Weight |
1.25Kg | | .png) |
|
|
