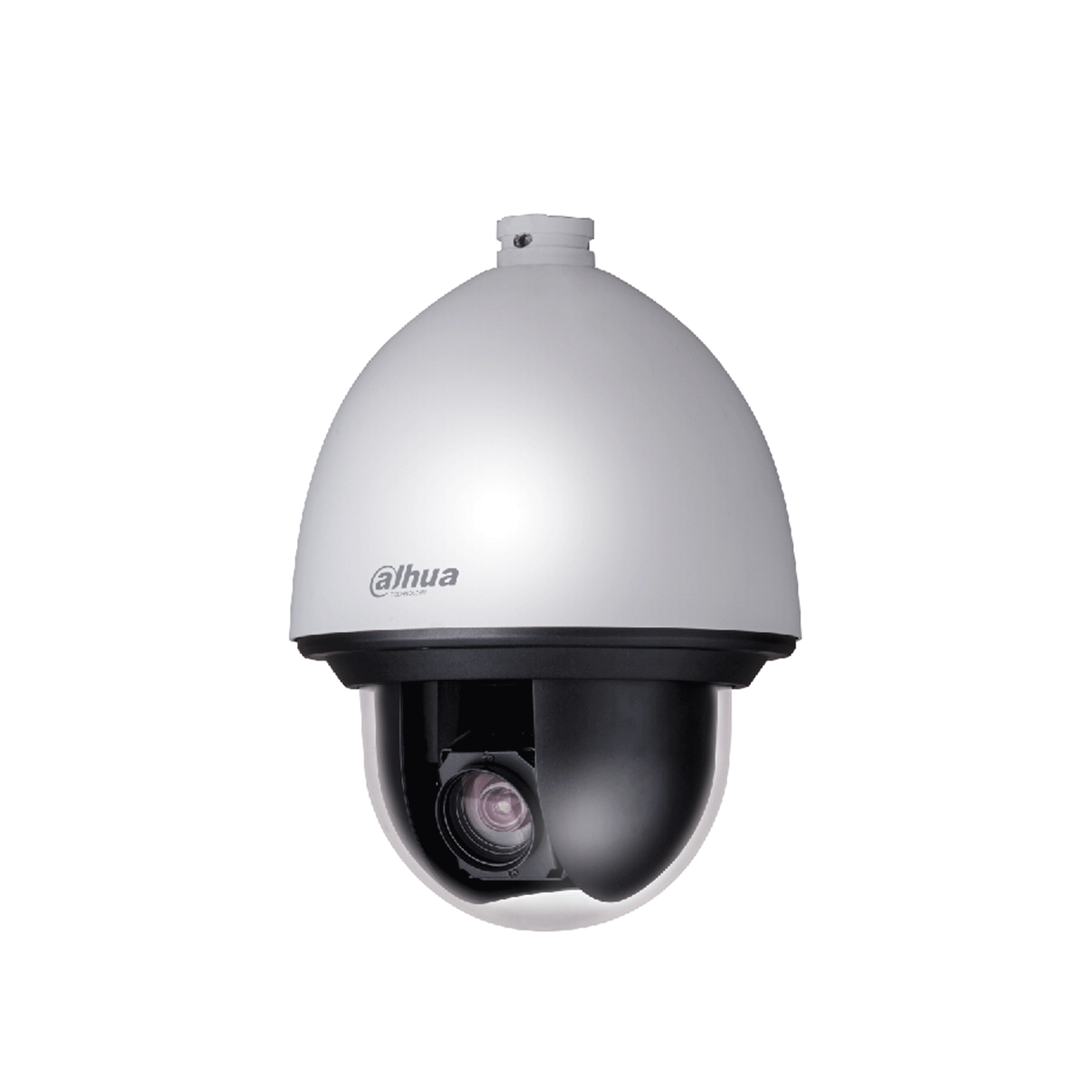

Dahua รุ่น SD65F230F- HNI Dahua รุ่น SD65F230F-HNI 2MP 30x Starlight PTZ Network Camera
> อิมเมจเซนเซอร์ 1/1.8 2Megapixel CMOS > ซูมออฟติคอล 30 เท่า > มองเห็นภาพสีในตอนกลางคืน > อัตราเฟรมเรท 30fps@1080P and 60fps@720P > ซัพพอร์ต Auto tracking and IVS > รองรับ PoE+ > มาตรฐานกันฝุ่น กันน้ำ IP67
วิดีโอ Dahua รุ่น SD65F230F-HNI
VIDEO
Camera
Image Sensor
1/1.8" CMOS
Effective Pixels
1920(H) x 1080(V), 2 Megapixels
RAM/ROM
1024M/64M
Scanning System
Progressive
Electronic Shutter Speed
1/1s~1/30,000s
Minimum Illumination
Color: [email protected] ; B/W:[email protected]
IR Distance
N/A
IR On/Off Control
N/A
IR LEDs
N/A
Lens
Focal Length
6mm~180mm
Max. Aperture
F1.5~ F4.3
Angle of View
H: 61.2° ~ 2.1°
Optical Zoom
30x
Focus Control
Auto/Manual
Close Focus Distance
100mm~ 1000mm
DORI Distance
Note: The DORI distance is a general proximity of distance which makes it easy to pinpoint the right camera for your needs. The DORI distance is calculated based on sensor specification and lab test result according to EN 62676-4 which defines the criteria for Detect, Observe, Recognize and Identify respectively. Detect
Observe
Recognize
Identify
1920m(6299ft ）
768m （ 2520ft)
384m(1260ft)
192m(630ft)
PTZ
Pan/Tilt Range
P an: 0° ~ 360° endless; Tilt: -20° ~ 90°,auto flip 180°
Manual Control Speed
Pan: 0.1° ~300° /s; Tilt: 0.1° ~150° /s
Preset Speed
Pan: 600° /s; Tilt: 500° /s
Presets
300
PTZ Mode
5 Pattern, 8 Tour, Auto Pan ,Auto Scan
Speed Setup
Human-oriented focal Length/ speed adaptation
Power up Action
Auto restore to previous PTZ and lens status after
power failure
Idle Motion
Activate Preset/ Scan/ Tour/ Pattern if there is no
command in the specified period
Protocol
DH-SD, Pelco-P/D (Auto recognition)
Intelligence
Event Trigger
Motion detection, Video tampering , Scene changing, Network disconnection, IP address conflict, Illegal Access, Storage anomaly
Auto Tracking
Support
IVS
Tripwire, Intrusion, Abandoned/Missing
Advanced Intelligent Functions
Face Detection, Heat Map
Video
Compression
H.264 / MJPEG
Streaming Capability
3 Streams
Resolution
1080P(1920×1080)/720P(1280×720)/D1(704×576/ 704×480)/CIF(352×288/352×240)
Frame Rate
Main stream: 1080P(1~25/30fps), 720P(1~50/60fps)
Sub stream1: D1/CIF(1 ~ 25/30fps)
Sub stream2: 1080P/720P/D1/CIF (1 ~ 25/30fps)
Bit Rate Control
CBR/VBR
Bit Rate
H.264: 448K~8192Kbps, MJPEG: 4096K~20480Kbps
Day/Night
Auto(ICR) / Color / B/W
Backlight Compensation
BLC / HLC / WDR(120dB)
White Balance
Auto, ATW, Indoor, Outdoor, Manual
Gain Control
Auto / Manual
Noise Reduction
Ultra DNR (2D/3D)
Motion Detection
Support
Region of Interest
Support
Electronic Image Stabilization (EIS)
Support
Defog
Support
Digital Zoom
16x
Flip
180°
Privacy Masking
Up to 24 areas
Audio
Compression
G.711a/G.711mu/G.726/AAC
Network
Ethernet
RJ-45 (10Base-T/100Base-TX)
Protocol
IPv4/IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP,
ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP,
DNS,PPPOE,DDNS,FTP, IP Filter,QoS,Bonjour,802.1x
Interoperability
ONVIF Profile S&G, API
Streaming Method
Unicast / Multicast
Max. User Access
20 users
Edge Storage
Local PC for instant recording, Micro SD card 128GB
Web Viewer
IE, Chrome, Firefox, Safari
Management Software
Smart PSS, DSS, DMSS
Smart Phone
IOS, Android
Certifications
Certifications
CE: EN55032/EN55024/EN50130-4
FCC: Part15 subpartB,ANSI C63.4- 2014
UL: UL60950-1+CAN/CSA C22.2 , No.60950-1
Interface
Video Interface
1 port(BNC, 1.0V[p-p], 75Ω)
RS485
1
Audio I/O
1 /1
Alarm I/O
7 /2
Electrical
Power Supply
AC24V/3A(±25%), PoE+(802.3at)
Power Consumption
AC24V: 22W/ Max.43W (Heateron),
PoE+(802.3at): 20W
Environmental
Operating Conditions
-40°C ~ 70°C (-40°F ~ +158°F) / Less than 95% RH
Ingress Protection
IP67
Vandal Resistance
IK10
Construction
Casing
Metal
Dimensions
Φ242(mm) x 341 (mm)
Net Weight
4.5kg(9.92lb)
Gross Weight
8.25kg(18.19lb)
