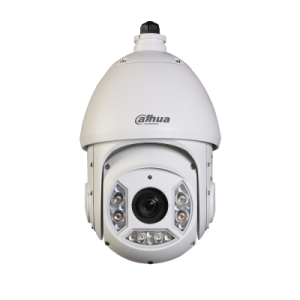

Dahua รุ่น SD6C131U-HNI


Dahua รุ่น SD6C131U-HNI

20P 31x Starlight IR PTZ Network Camera


>อิมเมจเซนเซอร์ขนาด 1/2.8” STARVIS™ CMOS

>ซูมออฟติคอล 31เท่า
>มองเห็นภาพสีในตอนกลางคืน
>รองรับระบบ H.265 Encoding
>อัตราเฟรมเรท  25/30/50/60fps@720P
>ซัพพอร์ต Auto-tracking and IVS
>ระยะอินฟาเรด  150เมตร
>มาตรฐานกันฝุ่น กันน้ำ IP66


วิดีโอ Dahua รุ่น SD6C131U-HNI

Camera
Image Sensor1/2.8” STARVIS™ CMOS
Effective Pixels1280(H) x 720(V), 1 Megapixels
RAM/ROM1024M/128M
Scanning SystemProgressive
Electronic Shutter Speed1/1s~1/30,000s
Minimum IlluminationColor: [email protected]; [email protected] (IR on)
S/N RatioMore than 55dB
IR DistanceDistance up to 150m (492ft)
IR On/Off ControlAuto/Manual
IR LEDs6
Lens
Focal Length4.8mm~150mm
Max. ApertureF1.6 ~ F4.4
Angle of ViewH: 58.3° ~ 1.9°
Optical Zoom31x
Focus ControlAuto/Manual
Close Focus Distance100mm~ 1000mm
DORI Distance
Note: The DORI distance is a “general proximity” of distance which makes it easy to pinpoint the right camera for your needs. The DORI distance is calculated based on sensor specification and lab test result according to EN 62676-4 which defines the criteria for Detect, Observe, Recognize and Identify respectively.
DetectObserveRecognizeIdentify
1613m(5292ft)646m(2119ft)323m(1060ft)161m(528ft)
PTZ
Pan/Tilt RangePan: 0° ~ 360° endless; Tilt: -15° ~ 90°,auto flip 180°
Manual Control SpeedPan: 0.1° ~160° /s; Tilt: 0.1° ~120° /s
Preset SpeedPan: 240° /s; Tilt: 200° /s
Presets300
PTZ Mode5 Pattern, 8 Tour, Auto Pan ,Auto Scan
Speed SetupHuman-oriented focal Length/ speed adaptation
Power up ActionAuto restore to previous PTZ and lens status after power failure
Idle MotionActivate Preset/ Scan/ Tour/ Pattern if there is no command in the specified period
ProtocolDH-SD, Pelco-P/D (Auto recognition)
Intelligence
Auto TrackingSupport
IVSTripwire, Intrusion,Abandoned/Missing, Face Detection, Heat Map
Video
CompressionH.265+/H.265/H.264+/H.264
Streaming Capability3 Streams
Resolution720P(1280×720)/D1(704×576/704×480)/CIF(352× 288/352×240)
Frame RateMain stream: 720P(1~50/60fps)
Sub stream1: D1/CIF(1 ~ 25/30fps)
Sub stream2: 720P/D1/CIF (1~25/30fps)
Bit Rate ControlCBR/VBR
Bit RateH.265/H.264: 448K ~ 8192Kbps
Day/NightAuto(ICR) / Color / B/W
Backlight CompensationBLC / HLC / WDR (120dB)
White BalanceAuto, ATW, Indoor, Outdoor, Manual
Gain ControlAuto / Manual
Noise ReductionUltra DNR (2D/3D)
Motion DetectionSupport
Region of InterestSupport
Electronic Image

Stabilization (EIS)

Support
DefogSupport
Digital Zoom16x
Flip180°
Privacy MaskingUp to 24 areas
Audio
CompressionG.711a/G.711Mu/AAC/G.722 / G.726/G.729/MPEG2-L2
Network
EthernetRJ-45 (10Base-T/100Base-TX)
ProtocolIPv4/IPv6,HTTP,HTTPS,SSL,TCP/IP, UDP,UPnP, ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS,PPPOE,DDNS,FTP, IP Filter,QoS,Bonjour,802.1x
InteroperabilityONVIF, PSIA, CGI
Streaming MethodUnicast / Multicast
Max. User Access20 users
Edge StorageNAS (Network Attached Storage),Local PC for instant recording, Micro SD card 128GB
Web ViewerIE, Chrome, Firefox, Safari
Management SoftwareSmart PSS, DSS
Smart PhoneIOS, Android
Certifications
CertificationsCE: EN55032/EN55024/EN50130-4

FCC: Part15 subpartB,ANSI C63.4- 2014

UL: UL60950-1+CAN/CSA C22.2,No.60950-1

Interface
Video Interface1 port(BNC, 1.0V[p-p], 75Ω)
RS4851
Audio I/O1/1
Alarm I/O2/1
Electrical
Power SupplyAC24V/3A(±10%)
Power Consumption10.5W, 26W (IR on)
Environmental
Operating Conditions-40°C ~ 60°C (-40°F ~ +140°F) / Less than 95% RH
Ingress ProtectionIP66
Vandal ResistanceN/A
Construction
CasingMetal
DimensionsΦ205(mm) x 336(mm)
Net Weight5kg(11.02lb)
Gross Weight8.3kg(18.30lb)
